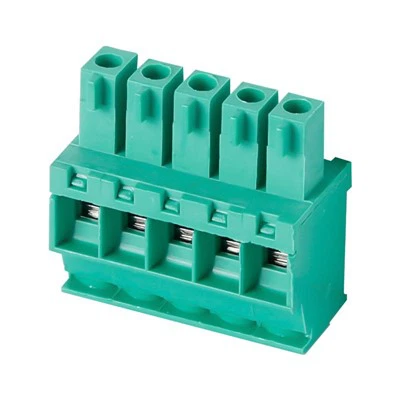

As a supplier of PCB Spring Terminal Blocks, I understand the critical importance of preventing overheating in these components. Overheating can lead to a variety of issues, including reduced performance, premature failure, and even safety hazards. In this blog post, I will share some insights and practical tips on how to prevent overheating in PCB Spring Terminal Blocks. PCB Spring Terminal Block
Understanding the Causes of Overheating
Before we can discuss prevention strategies, it’s essential to understand the root causes of overheating in PCB Spring Terminal Blocks. Several factors can contribute to excessive heat generation, including:
High Current Loads
One of the primary causes of overheating is the application of high current loads to the terminal block. When the current flowing through the terminals exceeds their rated capacity, it generates more heat than the block can dissipate effectively. This can occur when the terminal block is used in a circuit with a high-power device or when multiple devices are connected in parallel, increasing the overall current draw.
Poor Contact Resistance
Another common cause of overheating is poor contact resistance between the terminals and the wires. When the connection is not secure or the contact surfaces are dirty or corroded, it increases the resistance in the circuit. According to Ohm’s Law (V = IR), an increase in resistance leads to an increase in power dissipation (P = I²R), resulting in more heat generation.
Inadequate Ventilation
Proper ventilation is crucial for dissipating heat from the terminal block. If the block is installed in an enclosed space or surrounded by other components that impede air circulation, the heat cannot escape efficiently. This can cause the temperature to rise steadily, leading to overheating.
Environmental Factors
The operating environment can also play a significant role in the temperature of the terminal block. High ambient temperatures, humidity, and dust can all affect the performance and heat dissipation capabilities of the block. For example, in a hot and humid environment, the terminal block may absorb moisture, which can increase the risk of corrosion and electrical shorts.
Prevention Strategies
Now that we understand the causes of overheating, let’s explore some effective prevention strategies that I recommend to my customers.
Select the Right Terminal Block
The first step in preventing overheating is to choose the right terminal block for your application. Consider the current rating, voltage rating, and number of poles required for your circuit. Make sure to select a terminal block that can handle the maximum current and voltage that will be applied to it. It’s also important to choose a block with a suitable wire gauge range to ensure a proper fit and low contact resistance.
Ensure Proper Installation
Proper installation is crucial for maintaining low contact resistance and preventing overheating. Follow the manufacturer’s instructions carefully when installing the terminal block. Make sure the wires are stripped to the correct length and inserted fully into the terminals. Use a suitable tool to tighten the screws or springs to the recommended torque. Over-tightening can damage the terminals, while under-tightening can result in a loose connection and high contact resistance.
Maintain Good Contact Surfaces
Regular maintenance of the contact surfaces is essential for preventing overheating. Inspect the terminals periodically for signs of dirt, corrosion, or damage. If necessary, clean the contact surfaces using a suitable cleaning agent and a soft brush. Avoid using abrasive materials that could scratch the surfaces and increase the resistance.
Provide Adequate Ventilation
To ensure proper heat dissipation, provide adequate ventilation around the terminal block. Avoid installing the block in an enclosed space or near other heat-generating components. If possible, use a fan or other cooling device to improve air circulation. You can also consider using a heat sink or thermal pad to transfer heat away from the terminal block.
Monitor the Temperature
Monitoring the temperature of the terminal block is an effective way to detect potential overheating issues early. Use a temperature sensor or infrared thermometer to measure the temperature of the block during operation. If the temperature exceeds the recommended operating range, take immediate action to identify and address the cause of the overheating.
Consider Derating
In some cases, it may be necessary to derate the terminal block to prevent overheating. Derating involves reducing the current or voltage rating of the block to account for factors such as high ambient temperature, poor ventilation, or continuous operation. Consult the manufacturer’s datasheet or technical support team for guidance on derating requirements for your specific application.
Case Studies
To illustrate the importance of preventing overheating in PCB Spring Terminal Blocks, let me share a few real-world case studies.
Case Study 1: Industrial Automation System
A customer was experiencing frequent failures in their industrial automation system due to overheating of the PCB Spring Terminal Blocks. After investigating the issue, we discovered that the blocks were being used in a circuit with a high current load and inadequate ventilation. We recommended replacing the existing terminal blocks with higher-rated blocks and improving the ventilation around the installation. After implementing these changes, the overheating issues were resolved, and the system has been operating reliably ever since.
Case Study 2: Renewable Energy Application
Another customer was using PCB Spring Terminal Blocks in a solar power system. They noticed that the blocks were getting hot during operation, which was affecting the performance of the system. Upon inspection, we found that the contact resistance between the terminals and the wires was high due to improper installation. We provided the customer with training on proper installation techniques and recommended using a torque wrench to ensure consistent tightening. After re-installing the terminal blocks, the temperature dropped significantly, and the system performance improved.
Conclusion
Preventing overheating in PCB Spring Terminal Blocks is essential for ensuring the reliability and safety of your electrical systems. By understanding the causes of overheating and implementing the prevention strategies outlined in this blog post, you can minimize the risk of overheating and extend the lifespan of your terminal blocks.
PCB Screw Terminal Block As a supplier of high-quality PCB Spring Terminal Blocks, I am committed to providing my customers with the best products and technical support. If you have any questions or need assistance with preventing overheating in your applications, please don’t hesitate to contact me to discuss your specific requirements and explore how our products can meet your needs.
References
- Ohm’s Law: A fundamental law in electricity that describes the relationship between voltage, current, and resistance.
- Manufacturer’s Datasheets: Provides detailed information about the specifications, ratings, and installation requirements of PCB Spring Terminal Blocks.
- Industry Standards and Guidelines: Such as UL, IEC, and VDE standards, which provide safety and performance requirements for electrical components.
